ULINKpro Debug Adapter

ULINKpro Debug Adapter

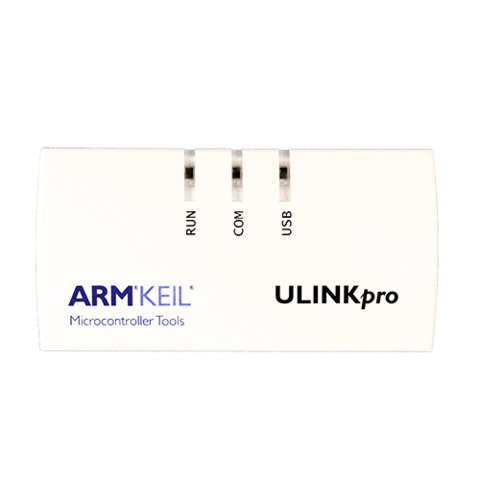

ULINKpro debug and trace unit programs, debugs and analyzes applications running on Arm Cortex-based devices using its full trace capability. The high-speed data and instruction trace is streamed directly to the PC providing detailed analysis of program behaviour, which is particularly helpful when certifying for functional safety. Streaming instruction trace requires the target device to have ETM (Embedded Trace Macrocell).


Used in conjunction with the performance analysis within Arm Keil MDK, it identifies program bottlenecks, optimizes applications and isolates problems

  • ulinkpro
uprotable

WHICH ULINK

ULINK2

ULINK2 is an entry-level debugger for Cortex-M devices. Control the processor, set breakpoints, and read/write memory contents, all while the processor is running at full speed.


ULINKplus

ULINKplus combines isolated debug connection, power measurement, and I/O for test automation. Function, timing, and power consumption visibility enables developers to optimize applications further.


ULINKpro

This sophisticated unit enables developers to program, debug and analyze applications using high-speed streaming trace, which is required for code coverage and performance analysis.

Features & Specifications

Debug protocol

Arm CoreSight.


Target connectors

Target connectors are 10-pin (0.05") Cortex debug connector, 20-pin (0.05") Cortex debug + ETM connector and 20-pin (0.1") Arm standard JTAG connector


Speed

Data and event trace for Cortex-M up to 100 Mbit/s (Manchester mode).

Up to 50 MHz JTAG/SW clock speed.

Instruction trace for Cortex-M3, Cortex-M4 and Cortex-M7 up to 800 Mbit/s.

ETM trace for Cortex-M devices runs up to 200 MHz (selected devices may have trace-port bandwidth limitations).


Software requirements

This debug probe is best used alongside Arm Keil MDK (sold seperately). If required, it can be used alongside third party tools.
