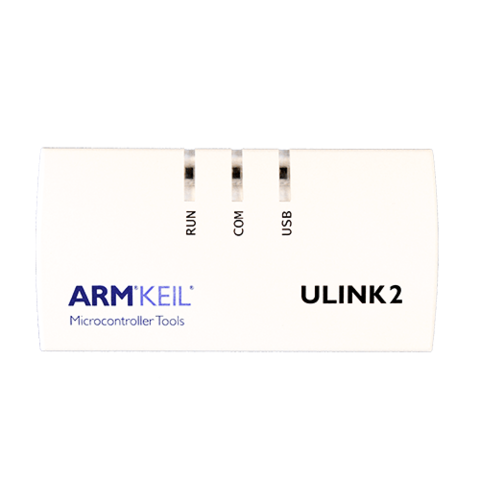

ULINK2 Debug Adapter

ULINK2 Debug Adapter

ULINK2 debugs programs using simple run/stop debugging. This entry level unit, together with Arm Keil MDK, debugs applications running on Cortex-M devices.


You control the processor, set breakpoints and read/write memory contents, all while the processor is running at full speed.

  • u2
uprotable

WHICH ULINK

ULINK2

ULINK2 is an entry-level debugger for Cortex-M devices. Control the processor, set breakpoints, and read/write memory contents, all while the processor is running at full speed.


ULINKplus

ULINKplus combines isolated debug connection, power measurement, and I/O for test automation. Function, timing, and power consumption visibility enables developers to optimize applications further.


ULINKpro

This sophisticated unit enables developers to program, debug and analyze applications using high-speed streaming trace, which is required for code coverage and performance analysis.

Features & Specifications

Debug protocol

Arm CoreSight.


Target connectors

Target connectors are 10-pin (0.05") Cortex debug connector and 20-pin (0.1") Arm standard JTAG connector.


Speed

1 Mbit/sec SWO trace.

Up to 10 MHz JTAG/SW clock speed.


Software requirements

This debug probe is best used alongside Arm Keil MDK (sold seperately). If required, it can be used alongside third party tools.
